Yamaha

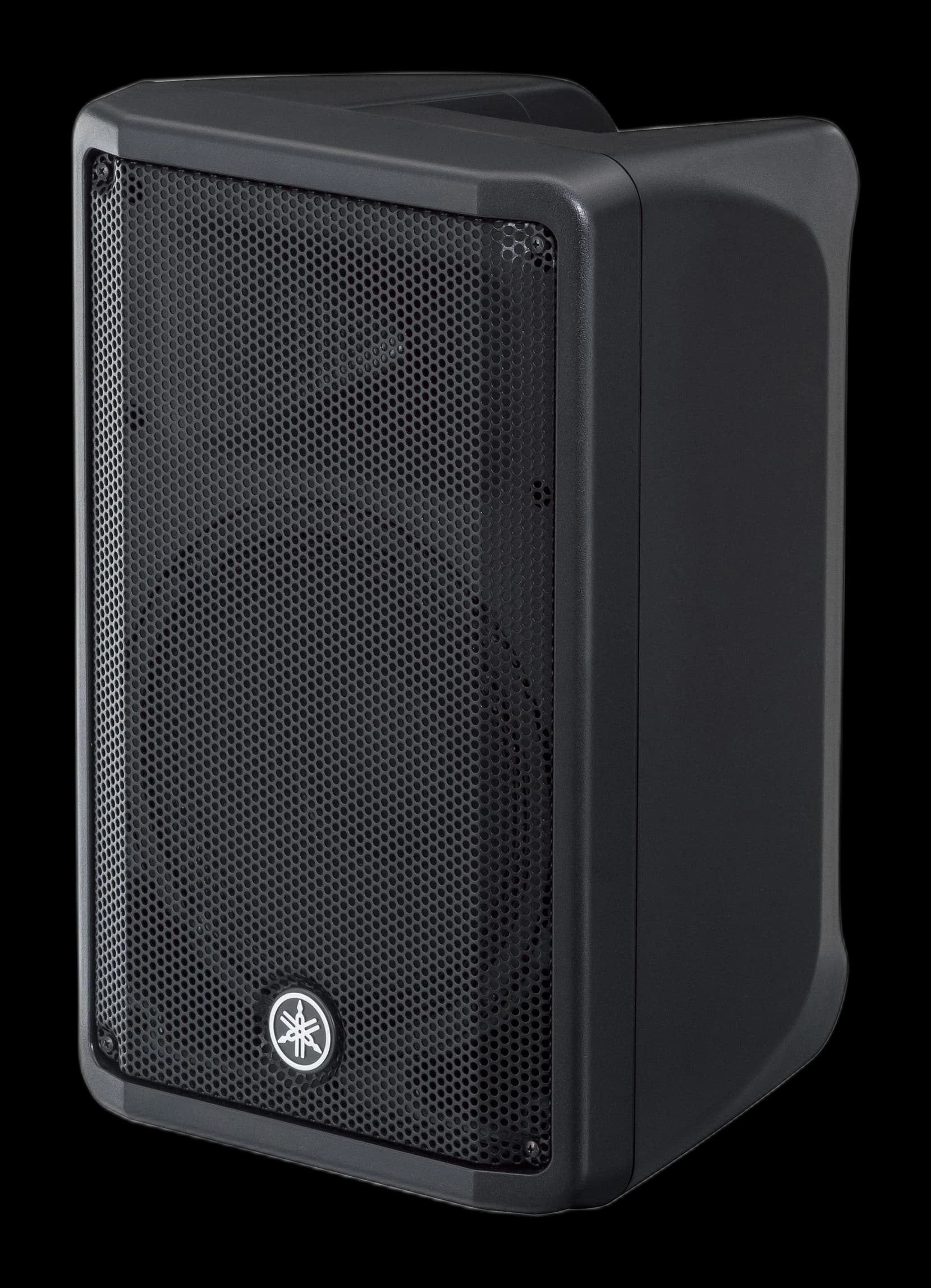

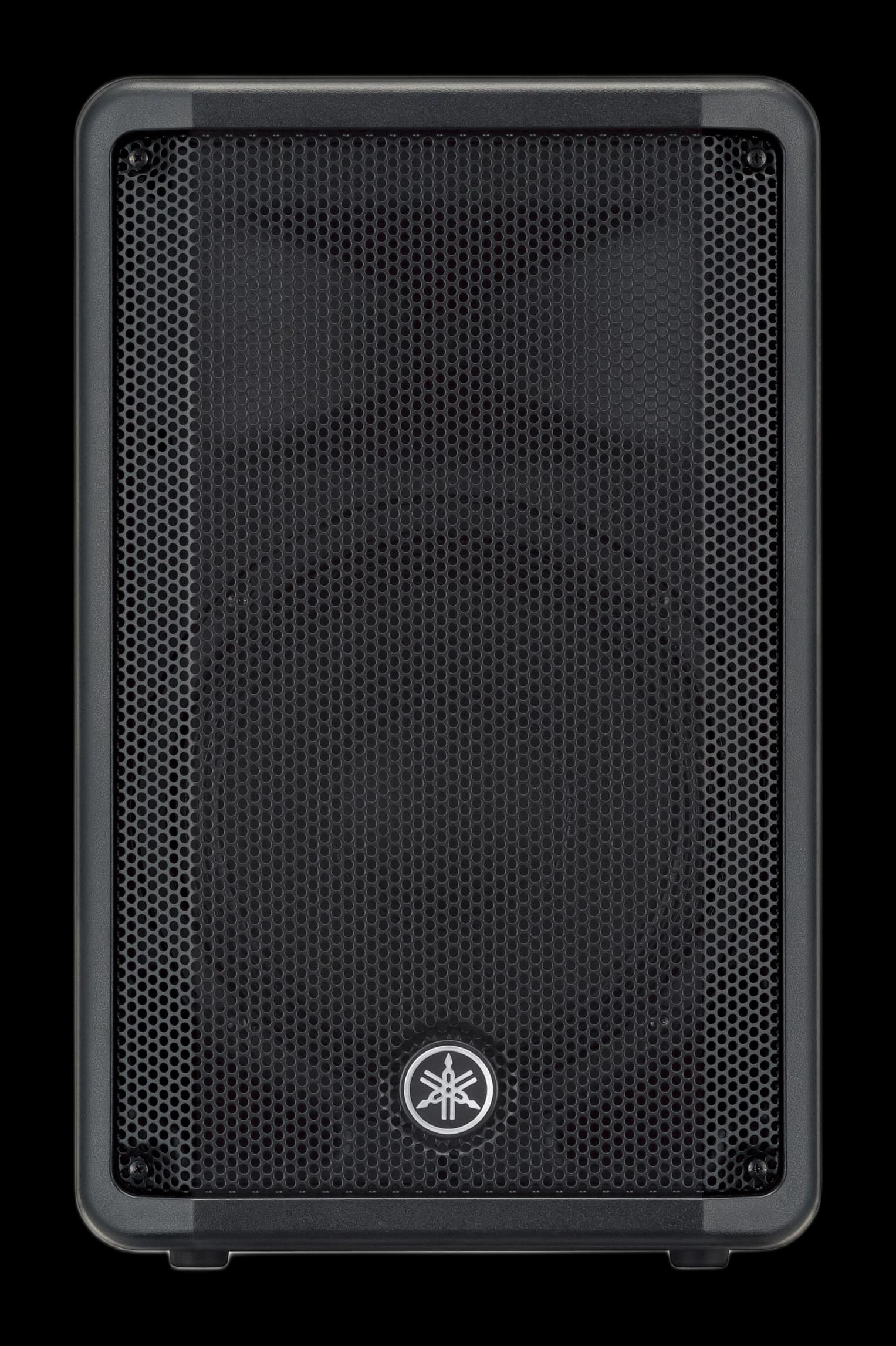

Yamaha DBR10

speaker utama FOH portable, monitor panggung, aula serbaguna, event skala kecil-menengah, rumah ibadah

Spesifikasi

General
Speaker Type	2-way bi-amp aktif, bass-reflex
Akustik
Crossover	2,1 kHz, FIR-X tuning (linear phase FIR)
Fisik
Berat Bersih	10,5 kg kg
Dimensi (W x H x D)	308 x 493 x 289 mm
Performance
Power Output	700 W dinamis (LF 500 W + HF 200 W); 325 W kontinu
Frequency Response	55 Hz - 20 kHz (-10 dB)
Maximum SPL	129 dB SPL @1m
Coverage Pattern	90° (H) x 60° (V), constant directivity horn
Components
LF Driver	Woofer cone 10", voice coil 2", magnet ferrite
HF Driver	Compression driver throat 1", magnet ferrite
Connectivity

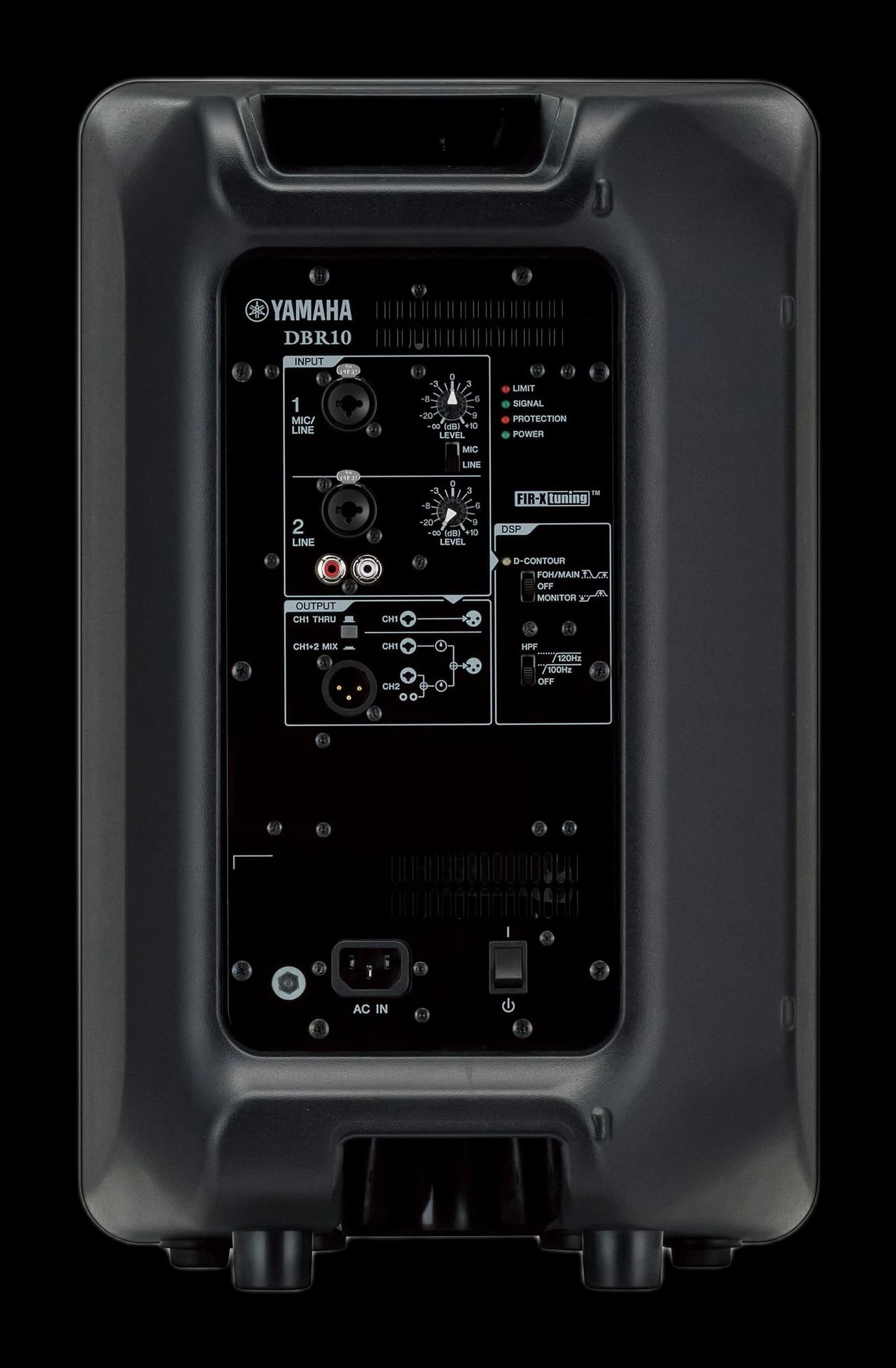

Inputs	INPUT1 Combo x1; INPUT2 Combo x1 + RCA pin x2 (unbalanced)
Features
DSP	—
