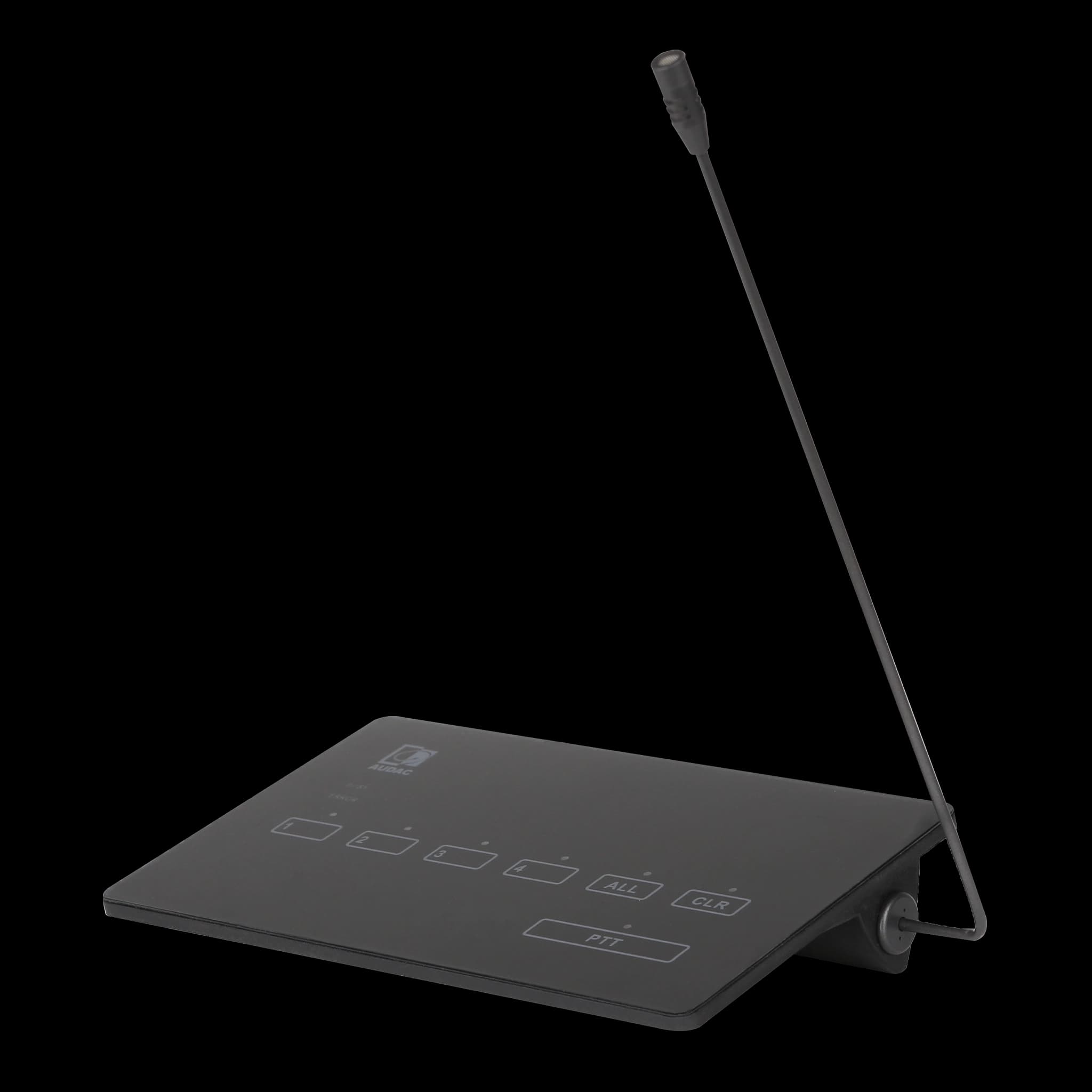

AUDAC MPX48
Cocok untuk ruang kontrol atau lobi yang telah menggunakan matrix AUDAC MTX48 dan membutuhkan konsol paging 4 zona bertampilan modern dengan panel kaca sentuh.
Spesifikasi
| Features | |
|---|---|
| Zone Count | 4 zona |
| Control Panel | SurfaceTouch — panel kaca dengan tombol kapasitif |
| General | |
| Microphone Type | Back electret condenser |
| Audio | |
| Polar Pattern | Cardioid |
| Frequency Response (±3dB) | 50 Hz – 16 kHz |
| Sensitivity (1W/1m) | 45 dB |
| Max Sound Pressure | 130 dB |
| Power Consumption | 1.5 W |
| Connectivity | |
| Supply Voltage | 24 V DC (dari unit MTX) |
| Connector | RJ45 (kabel fixed 2 m) |
| Max Cable Distance (CAT5E+) | 300 m |
| Data Bus Control | RS-485 (audio: differential analogue) |
| Physical | |
| Dimensions (W x H x D) | 221 x 43 x 112 |
| Weight | 0.33 kg |
| Construction Material / Color | ABS, Black (RAL9004) |
